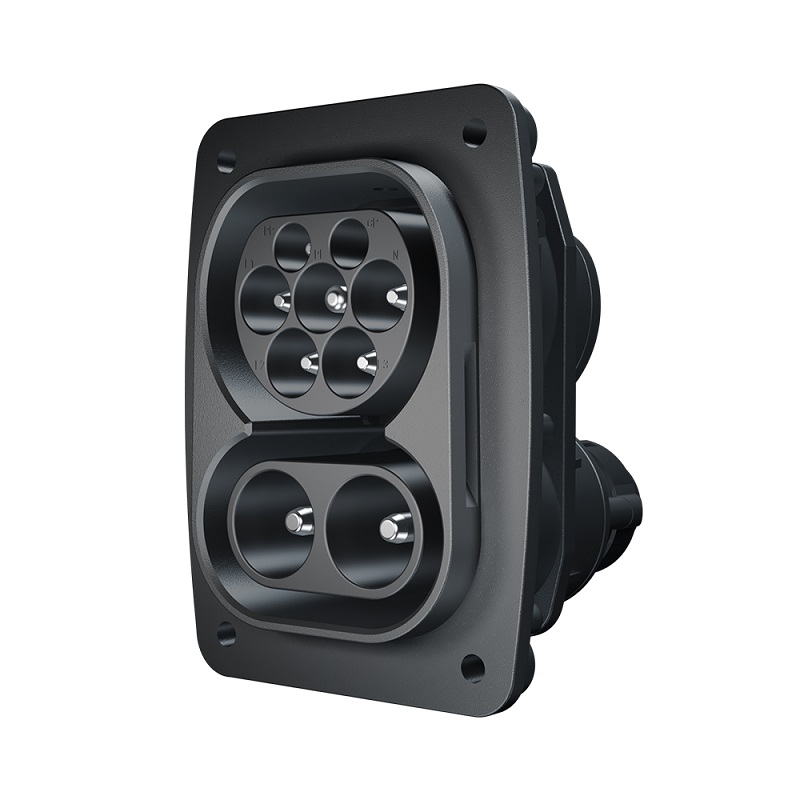

CCS Combo2 Inlet Socket, 250V/480V AC, 1000V DC, lEC 62196

Short Description:

CCS Combo 2 is a charging standard widely used in Europe and some other regions for DC Fast Charging (DCFC) as well as Level 2 AC charging.
Joint’s Type 2 socket is a robust EV charging socket that complies with open and universal standards.

As a combination charging connector, the Type 2 socket combines single-phase and three-phase AC fast charging with a maximum output of 43 kW, providing a comprehensive charging solution.




  • Rated Opearing Current: 80A/125A/150A/200A
  • Operation Voltage: 250V / 480V AC; 1000V DC
  • Withstand Voltage: 3000V
  • Operation Temperature: -30°C~50C°C
  • Standard: lEC 62196
  • Mechanical Life: >10000times
  • Certification: CE
  • Product Detail

    FAQs

    Product Tags

    CCS Combo2 Inlet Socket NA


  • Previous:
  • Next:

  • What is ENERGY STAR® Certification?

    ENERGY STAR Certification (ES) is a voluntary energy-efficiency labeling program that helps consumers identify the most energy-efficient products. The ES label is awarded to products that consume less than the minimum power consumption standard, aiming to reduce overall energy consumption.

    Against the backdrop of increasing global energy scarcity, the ENERGY STAR program has been adopted by several countries, including Canada, Australia, New Zealand, Japan, and the European Union, boasting a market recognition rate of over 90% in North America. In summary, a product with ENERGY STAR certification symbolizes recognition by the US Department of Energy and the EPA, providing consumers with confidence in purchasing energy-saving products.

    What is IP and IK rating?

    Ingress Protection (IP) rating refers to a product’s waterproof and dustproof rating, indicating its ability to resist liquids and small solids. Impact Protection (IK) rating refers to the product’s shell’s level of impact protection, rated on a scale from 0 to 9.

    A higher number indicates stronger protection. The first number in the IP rating represents resistance to solids, and the second number represents protection against liquids. For example, IP (8X) denotes the highest level of dust protection, with internal equipment shielded from solid particles. The IK level represents protection against mechanical impact, with level 8 indicating the ability to withstand the impact of a 2.5kg hammer at a height of 15.7 inches.



    What is OCPP?

    OCPP (Open Charge Point Protocol) is a communication protocol used between the charging post and the central management system, acting as a translator facilitating barrier-free communication. The newly launched OCPP 2.0.1 enhances functions from OCPP 1.6, such as supporting ISO15118 and smart charging capabilities.



    what is ISO15118?

    ISO15118 is a communication protocol between the charging post and the electric vehicle, enabling quick identification for immediate charging. This mode, compared to the previous RFID card charging method, brings great convenience to new energy vehicle owners. In addition to supporting plug-and-play functionality, ISO15118 ensures safe communication and smart charging, guaranteeing the safety of electric vehicle charging and enhancing communication between electric vehicles and charging stations for the fastest, most efficient, and safest charging method.



    About warranty

    We offer a comprehensive warranty service with varying durations depending on the specific product. In the event of any quality issues arising within the stipulated warranty period, excluding instances caused by improper use, you can reach out to us at your convenience. Our dedicated team is committed to promptly addressing and resolving any concerns you may have.

    For further details on our warranty terms, please don’t hesitate to get in touch with us.
